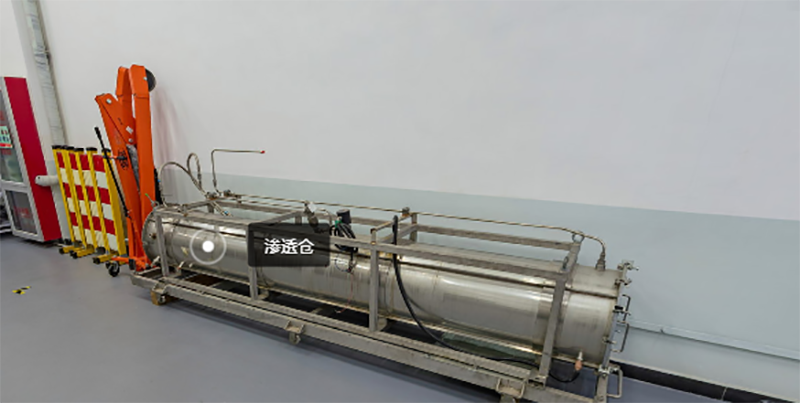

Infiltration chamber

Equipment Name: Permeation Chamber
Equipment function: Used to cooperate with the high-pressure hydrogen circulation test system - cylinder environment chamber to carry out permeability tests on gas cylinders
Equipment parameters: length 3410mm, diameter 536mm
Applicable products: Compressed hydrogen aluminum liner carbon fiber fully wrapped gas cylinder for vehicles and compressed hydrogen plastic liner carbon fiber fully wrapped gas cylinder for vehicles
Applicable standards:
GB/T 35544-2017 Compressed Hydrogen Gas Cylinders for Vehicles with Aluminum Inner Cylinders and Carbon Fiber Fully Wrapped Cylinders
T/CATSI 02 007-2020 Automotive Compressed Hydrogen Plastic Inner Container Carbon Fiber Fully Wrapped Gas Cylinder
T/CATSI 02011-2021 Gas Cycle Test Method for Hydrogen Storage Systems
Test project:
Room temperature penetration test
Extreme temperature penetration test

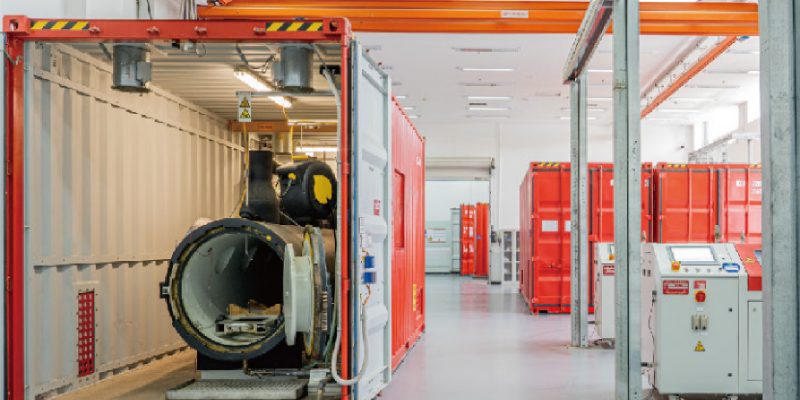

The Hydrogen Circulation and Penetration Testing Laboratory is one of the key laboratories for hydrogen energy testing at Techi, with a maximum allowable pressure of 105MPa and a hydrogen filling and discharging rate that meets international and domestic standards. It can undertake qualification certification and research and development testing for all vehicle mounted gas cylinders under 200L.

In terms of professional operation, Techi Hydrogen Energy Testing has reached a long-term strategic cooperation agreement with Dalian Boiler Pressure Testing Research Institute to jointly promote the operation of this testing equipment, providing huge support for the research and development of IV type cylinders in China, and providing safe and efficient high-pressure hydrogen performance and durability testing solutions for gas cylinders and hydrogen related components for manufacturers in the industry.

At present, Techi's ultra-high pressure hydrogen circulation testing has served numerous leading clients in the industry, with a cumulative testing experience of nearly 3000 hours.
