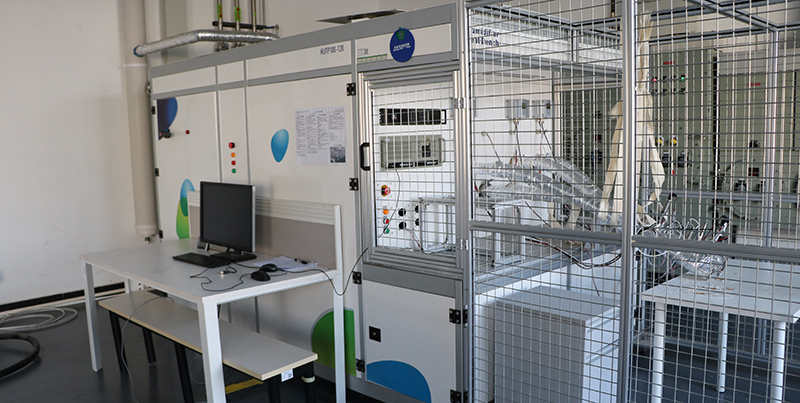

Equipment Name: Humidifier Test Stand
Equipment functions: dry air path simulation of fuel cell system, wet air path simulation of fuel cell system
Equipment parameters:
Dry measurement: pressure 0~3bar, temperature 40~90 ℃, flow rate 0~6000L/min;
Dry measurement: pressure 0-3bar, temperature 0-100 ℃, humidity 0-100%;
Wet side inlet: pressure 0~3bar, temperature 40~90 ℃, flow rate 0~4000L/min;
Wet side outlet: pressure 0-3bar, temperature 0-100 ℃, humidity 0-100%
Applicable product: Fuel cell membrane humidifier
Test project:
Leakage test of fuel cell membrane humidifier;
Internal leakage test of fuel cell membrane humidifier;
Performance testing of fuel cell membrane humidifier
