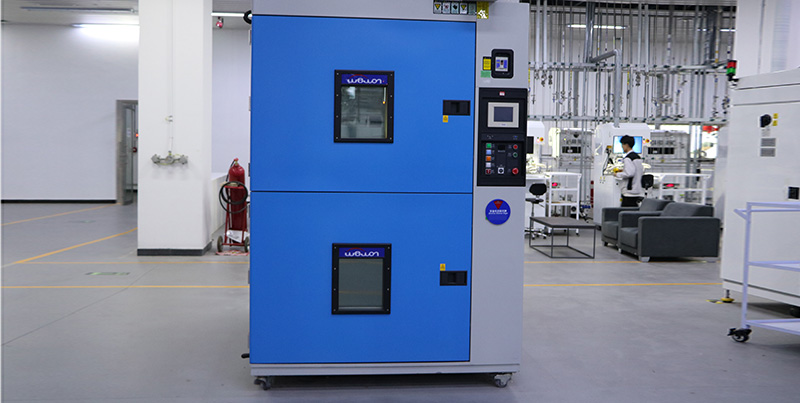

Equipment Name: Thermal Shock Test Chamber
Equipment function: Development, performance testing, evaluation, and research of fuel cell stacks/modules
Equipment parameters: Basket testing space size: 800mm (W) × 600mm (H) × 650mm (D), High temperature box temperature range:+60 ℃~200 ℃ (fully controllable), Low temperature box temperature range: -70 ℃~-10 ℃ (fully controllable), Temperature impact range: -40 ℃~+100 ℃, Basket bottom plate load upper limit: 65kg

Applicable products: Fuel cell single cells/stacks/modules
Applicable standards: GB/T 20042.2-2008, GB/T 29838-2013, GB/T 31035-2014, GB/T33978-2017
Test items: Freezing/thawing cycles, low-temperature storage, high-temperature storage and other tests of fuel cell stacks/modules
CNAS Capability: Freeze/Thaw Cycle Test, Low Temperature Storage Test
